Galvanized Razor Barbed Wire

Product Name: Galvanized Razor Barbed Wire

Model NO: NF-RBW-011

Product Description :

Material: Hot-dip galvanized plate, Stainless steel plate (SS430, SS304) ,PVC coated material .

HOW TO ORDER/SPECIFY

        Chat With Me
  • Specifications

Material: Hot-dip galvanized plate, Stainless steel plate (SS430, SS304) ,PVC coated material .

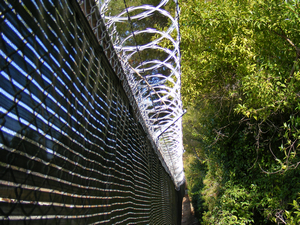

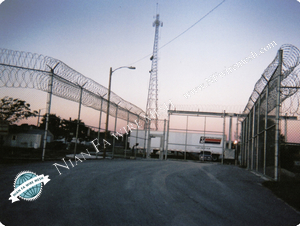

Mainly used in the safety and protection of highway and railway, bridges on both sides; in the security of airport, ports and quay; in the protection of municipal construction like parks, lawns, zoo, pool Lake, roads, and the residential segregation; in the decoration and protection of hotels, grogshops, supermarkets and entertainment. Processing can be customized according to customer's requirements.

Razor Barbed Wire BTO-10

Thickness: Wire Dia: Barb Length: Barb Width: Barb spacing:
0.5mm 2.5mm 10.0mm 13.0mm 26.0mm

No. of Loops Standard Length per Coil Loop Outside Diameter Notes
112 17m 450mm Cross type
102 16M 500mm Cross type
86 14M 600mm Cross type
72 12M 700mm Cross type
64 10M 800mm Cross type
52 9M 960mm Cross type



Razor Barbed Wire BTO-12

Thickness: Wire Dia: Barb Length: Barb Width: Barb spacing:
0.5mm 2.5mm 12.0mm 15.0mm 26.0mm

No. of Loops Standard Length per Coil Loop Outside Diameter Notes
112 17m 450mm Cross type
102 16M 500mm Cross type
86 14M 600mm Cross type
72 12M 700mm Cross type
64 10M 800mm Cross type
52 9M 960mm Cross type

Razor Barbed Wire BTO-18

Thickness: Wire Dia: Barb Length: Barb Width: Barb spacing:
0.5mm 2.5mm 18.0mm 15.0mm 33.0mm





Razor Barbed Wire BTO-22

Thickness: Wire Dia: Barb Length: Barb Width: Barb spacing:
0.5mm 2.5mm 22.0mm 15.0mm 34.0mm



No. of Loops Standard Length per Coil Loop Outside Diameter Notes
112 17m 450mm Cross type
102 16M 500mm Cross type
86 14M 600mm Cross type
72 12M 700mm Cross type
64 10M 800mm Cross type
52 9M 960mm Cross type

Razor Barbed Wire BTO-28

Thickness: Wire Dia: Barb Length: Barb Width: Barb spacing:
0.5mm 2.5mm 28.0mm 15.0mm 34.0mm

No. of Loops Standard Length per Coil Loop Outside Diameter Notes
112 17m 450mm Cross type
102 16M 500mm Cross type
86 14M 600mm Cross type
72 12M 700mm Cross type
64 10M 800mm Cross type
52 9M 960mm Cross type

Razor Barbed Wire BTO-30

Thickness: Wire Dia: Barb Length: Barb Width: Barb spacing:
0.5mm 2.5mm 30.0mm 18.0mm 34.0mm

No. of Loops Standard Length per Coil Loop Outside Diameter Notes
112 17m 450mm Cross type
102 16M 500mm Cross type
86 14M 600mm Cross type
72 12M 700mm Cross type
64 10M 800mm Cross type
52 9M 960mm Cross type



Razor Barbed Wire CTO-60

Thickness: Wire Dia: Barb Length: Barb Width: Barb spacing:
0.6mm 2.5mm 60.0mm 32.0mm 96.0mm

No. of Loops Standard Length per Coil Loop Outside Diameter Notes
33 8M 450mm Single coil
41 10M 500mm Single coil
41 10M 700mm Single coil
53 13M 960mm Single coil

Razor Barbed Wire CTO-65

Thickness: Wire Dia: Barb Length: Barb Width: Barb spacing:
0.6mm 2.5mm 65.0mm 21.0mm 100.0mm







No. of Loops Standard Length per Coil Loop Outside Diameter Notes
33 8M 450mm Single coil
41 10M 500mm Single coil
41 10M 700mm Single coil
53 13M 960mm Single coil



No. of Loops Standard Length per Coil Loop Outside Diameter Notes
112 17m 450mm Cross type
102 16M 500mm Cross type
86 14M 600mm Cross type
72 12M 700mm Cross type
64 10M 800mm Cross type
52 9M 960mm Cross type
