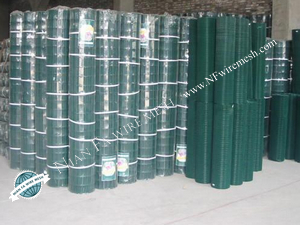

PVC Coated Welded Mesh
Product Name: PVC Coated Welded Mesh
Model NO: NF-WM-013
Product Description :
PVC Coated Wire Mesh Panel is made of high quality of welded galvanized iron wire mesh, to be coated with PVC powder by advanced automatic equipments.
 |
 |
|
- Specifications
- Packing
PVC Coated Wire Mesh Panel is made of high quality of welded galvanized iron wire mesh, to be coated with PVC powder by advanced automatic equipments.
The coated layer is enough strong in adhesiveness and bright luster with good anti-corrosive prosperity. Suitable for houses and properties, companies, gardens recreation areas, parks. All kinds of colors can be coated according to customers' special requirements.
| WIRE MESH WIDTH:2'~ 7'(0.61m ~ 2.13m) | ||
| WIRE MESH LENGTH:5'~ 300'(1.52m ~ 91.44m) | ||
| Gauge of Strand(swg) |
WIRE DIAMETER(BWG) |
Opening(INCH) |
| 12# | 0.109 | 2X2 3X3 4X4 |
| 12.5# | 0.098 | 2X2 2X1 3X2 4X2 |
| 14# | 0.083 | 1X1 2X2 2X1 3X2 4X2 |
| 15# | 0.072 | 1X1 2X2 1X2 3X2 4X2 |
| 16# | 0.065 | 1/2X1/2 3/4X3/4 1X1 1X1/2 3X2 4X2 |
| 17# | 0.058 | 1/2X1/2 3/4X3/4 1X1 1X1/2 |
| 18# | 0.049 | 1/2X1/2 3/4X3/4 1X1 1X1/2 |
| 19# | 0.042 | 1/2X1/2 3/4X3/4 1X1 1X1/2 |
| 20# | 0.035 | 1/2X1/2 3/4X3/4 1X1 1X1/2 5/8X5/8 3/8X3/8 |
| 21# | 0.032 | 1/2X1/2 3/4X3/4 1X1 1X1/2 3/8X3/8 1/3X1/3 |
| 22# | 0.028 | 1/4X1/4 1/2X1/2 1/3X1/3 3/4X3/4 |
| 23# | 0.025 | 1/4X1/4 1/2X1/2 1/3X1/3 |
| 24# | 0.022 | 1/4X1/4 |
| WIRE DIAMETER |
MESH | |
| INCH | MM | |
| 1.5mm/4.0mm | 4" x 4 " | 101.6mm x 101.6mm |
| 1.5mm/4.0mm | 4" x 3" | 101.6mm x 50.8mm |
| 1.2mm/4.0mm | 4" x 2 " | 101.6mm x 50.8mm |
| 1.2mm/4.0mm | 3" x 2 " | 75mm x 50.8mm |
| 1.1mm/4.0mm | 2" x 2 " | 50.8mm x 50.8mm |
| 1.0mm/3.0mm | 2" x 1 " | 50.8mm x 25.4mm |
| 0.45mm/2.0mm | 5/8x5/8 | 16mm x 16mm |
| 0.45mm/1.6mm | 3/8X3/8 | 10mmX10mm |
| 0.8mm/2.5mm | 3/8X3/8 | 30mmX30mm |
