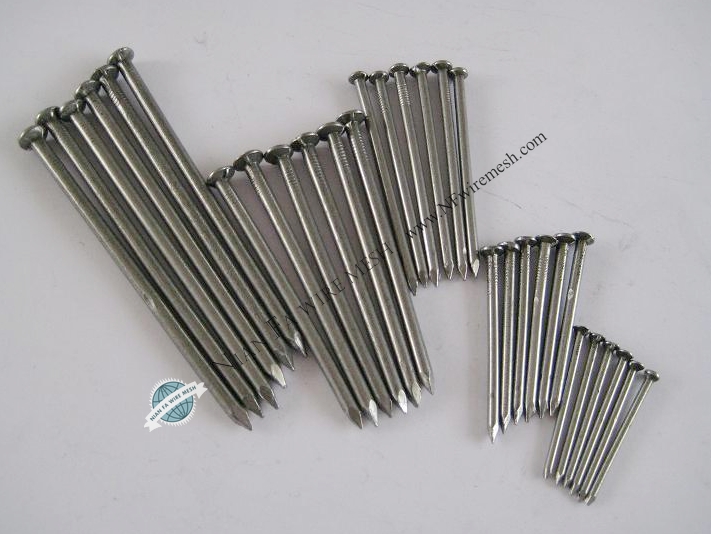

Polished Nails
Product Name: Polished Nails
Model NO: NF-CN-02
Product Description :
1.length:1-4" 2.gauge:BWG 19-5 3.surface:polished,galvanized 4.packing:inner box and then carton,or bag
 |
 |
|
- Type
- Specifications
- Packing
- Downloads
1) Material: Q195, Q215 wire rod as high-quality low-carbon-steel
2) Finish: Polished common nail, electric galvanized common nail, hot dipped galvanized common nail
3) Head: common head, countersunk head, lose head, flat countersunk chequerred head
4) Shank: plain, round
5) Point: diamond point, round point
6) Standing: BS EN 10230-1:2000, normal
7) Packing: 100PCS/0.5kg 1kg 2.5kg 5kg 10kg 20kg 25kg 1000kg plastic bag, carton box,
wooden box or
according to your requirement.
Normal packing for common nails:25kgs/carton in bundle, 25kgs/box.
8)Size:Available in bright or galvanized finishes. detailed size for common nail
|
Length |
Gauge |
|
|
(Inches) |
(mm) |
(B.W.G.) |
|
1/2 |
12.700 |
20/19/18 |
|
5/8 |
15.875 |
19/18/17 |
|
3/4 |
19.050 |
19/18/17 |
|
7/8 |
22.225 |
18/17 |
|
1 |
25.400 |
17/16/15/14 |
|
1-1/4 |
31.749 |
16/15/14 |
|
1-1/2 |
38.099 |
15/14/13 |
|
1-3/4 |
44.440 |
14/13 |
|
2 |
50.800 |
14/13/12/11/10 |
|
2-1/2 |
63.499 |
13/12/11/10 |
|
3 |
76.200 |
12/11/10/9/8 |
|
3-1/2 |
88.900 |
11/10/9/8/7 |
|
4 |
101.600 |
9/8/7/6/5 |
|
4-1/2 |
114.300 |
7/6/5 |
|
5 |
127.000 |
6/5/4 |
|
6 |
152.400 |
6/5/4 |

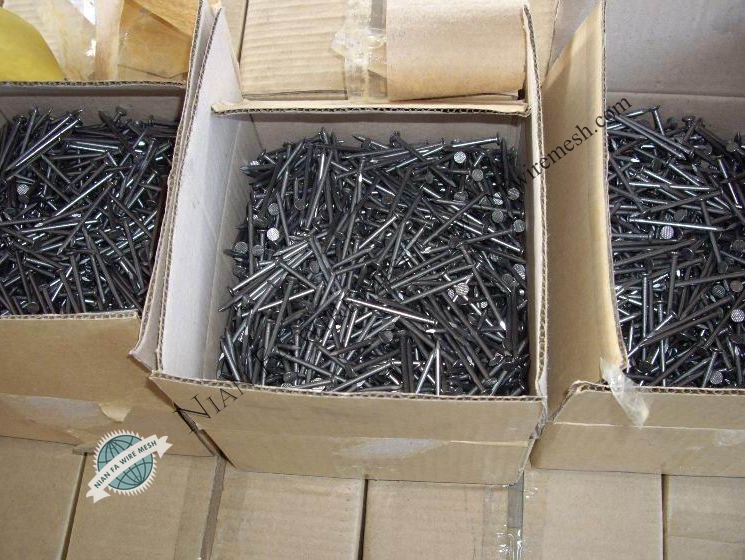

Package:
1)25Kg/carton/50Kg/Gunny Bag
2)7Lb/box,8boxes/carton , 16boxes/wooden case
3)1Kg/Box,20/25/16boxes/CTN bulk packing in paper carton,wooden case or hessian bag,or with inner boxes as your requirement
