Two Sided Fence
Product Name: Two Sided Fence
Model NO: TSF-001
Product Description :
 |
 |
|
- Details
- Specifications
- Packing
- Downloads
Two Sided Fence is an economy fence. Cheapness and easy installation is traits. Following is a general specification. Round and square post are available.
1.Wire Dia after PVC coated: 4.5mm?5.5mm
2.Mesh : 60mm x 120mm
3.Max size:2300mm x 3000mm
4.Post: Round-48mm x 2mm
5.frame: No
6.accessories:Rain cap, connection cards, anti-theft bolts;
7.Connection Type: Clip joint
Product Benefits
1.Widely used in Industrial, agricultural, municipal, transportation
2.Light, elegant, practical
3.Surface treatment: galvanized, plastic coated

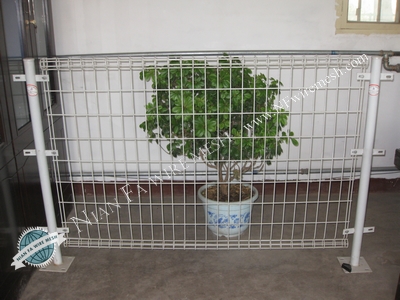

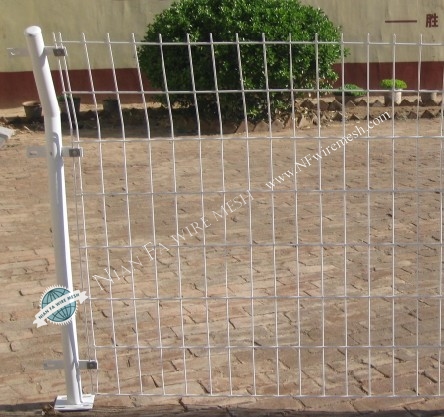

Bilateral wire fence
Reference Specifications (mm)
Size: height1200mm width 2000mm
Wire Dia: 4.5mm
Mesh: 70×150
Post: 48 ×1.5
Edge: 30×60
Flange: 150×150×4.0
Bilateral wire fence with Third bending
Reference Specifications (mm)
Size: height 1200mm width 2000mm
Wire Dia: 4.5mm
Mesh: 70×150
Post: 48 ×1.5
Edge: 30×60
Flange: 150×150×4.0
Bilateral wire fence for Residential Area
Bilateral wire fence
Reference Specifications (mm)
Size: height 1200mm width 2000mm
Wire Dia: 4mm
Mesh: 70×150
Post: 48 ×1.5
Edge: 30×60
Flange: 150×150×4.0
Bilateral wire fence for garden
Reference Specifications (mm)
Size: height 1800mm width 3000mm
Wire Dia: 4mm
Mesh: 70×150
Post: 48 ×1.5
Edge: 30×60

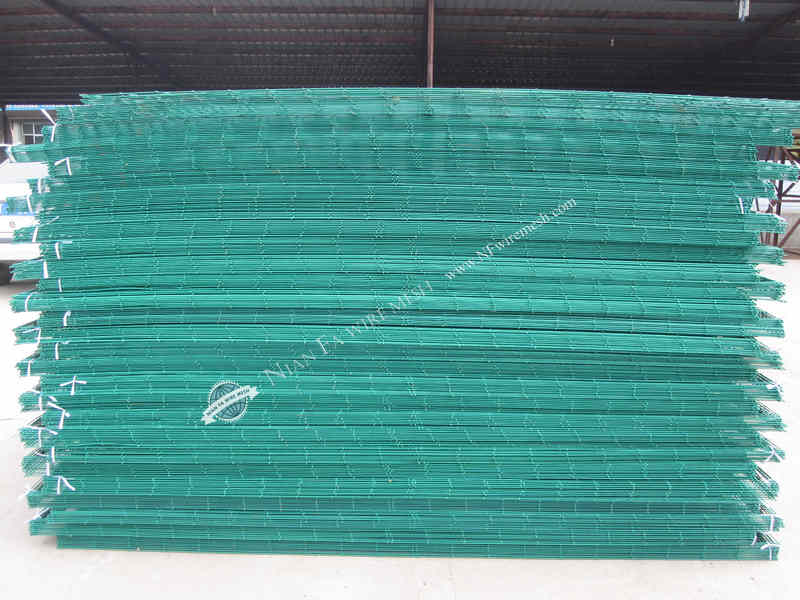

the panel

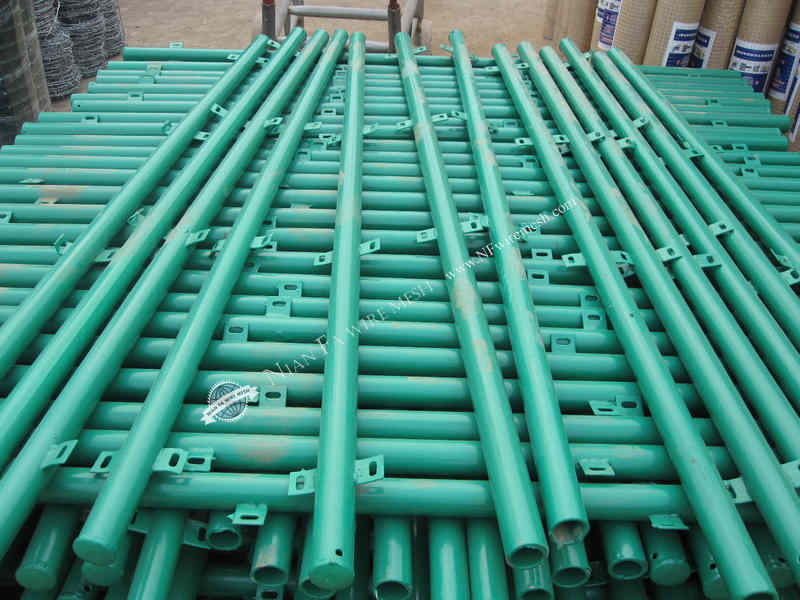

the post
