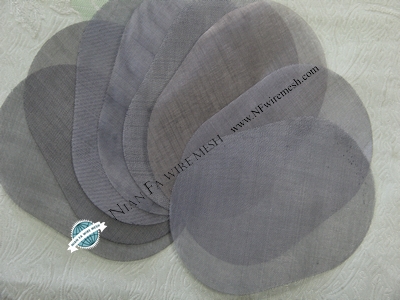

Stainless Steel wire mesh filter

Product Name: Stainless Steel wire mesh filter

Model NO: NF-WM-05

Product Description :

Specification: Wire diameter: 0.025mm-2.0mm Mesh:2mesh-600mesh Width: 0.5m-8m Length of standard: 30m Any size avalible as the requiements of the customer.

HOW TO ORDER/SPECIFY

        Chat With Me
  • Type
  • Specifications
  • Packing
  • Downloads

 Stainless steel wire mesh



Our company is the major manufacture of stainless steel wire mesh,especially know as its best quality and excellent repulation.



Material: SUS201,SUS304,SUS304L,SUS316,SUS316L



Weaving method: plain weave,twilled weave,dutch weave.



Uses : extensively used in mining,chemial industury,food industury and pharamaceutial industury.



characteristics:Acid reistance ,Alkali resistance,heat resistance,corrosion resistance



Specification:
Wire diameter: 0.025mm-2.0mm
Mesh:2mesh-600mesh
Width: 0.5m-8m
Length of standard: 30m

Any size avalible as the requiements of the customer.

mesh/inch wire diameter/mm aperture/mm mesh/inch wire diameter/mm aperture/mm
2mesh 1.8 10.9 60mesh 0.15 0.273
3mesh 1.6 6.866 70mesh 0.14 0.223
4mesh 1.2 5.15 80mesh 0.12 0.198
5mesh 0.91 4.17 90mesh 0.11 0.172
6mesh 0.81 3.433 100mesh 0.1 0.154
8mesh 0.6 2.575 120mesh 0.08 0.132
10mesh 0.55 1.99 140mesh 0.07 0.111
12mesh 0.5 1.616 150mesh 0.065 0.104
14mesh 0.45 1.362 160mesh 0.065 0.094
16mesh 0.4 1.188 180mesh 0.053 0.088
18mesh 0.35 1.06 200mesh 0.053 0.074
20mesh 0.3 0.97 250mesh 0.04 0.061
26mesh 0.28 0.696 300mesh 0.035 0.049
30mesh 0.25 0.596 325mesh 0.03 0.048

 packing: with cartons
