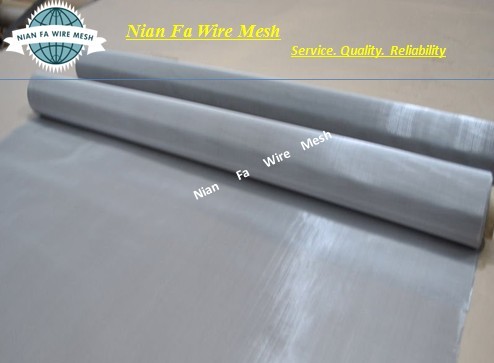

aisi 304 316 316l stainless steel wire mesh

Product Name: aisi 304 316 316l stainless steel wire mesh

Model NO: NF-WM-04

Product Description :

Our company is the major manufacture of stainless steel wire mesh,especially know as its best quality and excellent repulation.

Specification of Stainless steel wire mesh :
Wire diameter: 0.025mm-2.0mm
Mesh:2mesh-600mesh
Width: 0.5m-8m
Length of standard: 30m

Any size avalible as the requiements of the customer.

HOW TO ORDER/SPECIFY

        Chat With Me
  • Type
  • Specifications
  • Packing
  • Downloads

 Stainless Steel Wire Mesh  from first class stainless steel wire materials in SUS302, 304, 316, 304L, 316L.



Typical Weaving Patterns for Stainless Steel Wire Mesh: Plain weave, twill weave, dutch weave.



stainless steel woven wire mesh

mesh/inch

wire diameter
mm

aperture
mm



mesh/inch

wire diameter
mm

aperture
mm

2mesh

1.80

10.90

60mesh

0.15

0.273

3mesh

1.60

6.866

70mesh

0.14

0.223

4mesh

1.20

5.15

80mesh

0.12

0.198

5mesh

0.91

4.17

90mesh

0.11

0.172

6mesh

0.80

3.433

100mesh

0.10

0.154

8mesh

0.60

2.575

120mesh

0.08

0.132

10mesh

0.55

1.990

140mesh

0.07

0.111

12mesh

0.50

1.616

150mesh

0.065

0.104

14mesh

0.45

1.362

160mesh

0.065

0.094

16mesh

0.40

1.188

180mesh

0.053

0.088

18mesh

0.35

1.060

200mesh

0.053

0.074

20mesh

0.30

0.970

250mesh

0.04

0.061

26mesh

0.28

0.696

300mesh

0.035

0.049

30mesh

0.25

0.596

325mesh

0.03

0.048

40mesh

0.21

0.425

350mesh

0.03

0.042

50mesh

0.19

0.318

400mesh

0.025

0.0385

Width of Stainless Steel Wire Mesh: 0.6m-1.5m

 Packing: 1.Standard export seawirthy packing

                  2. Woven bag / wooden pallet,or as requried

Delivery time:5-15 days,depending on the quantity
